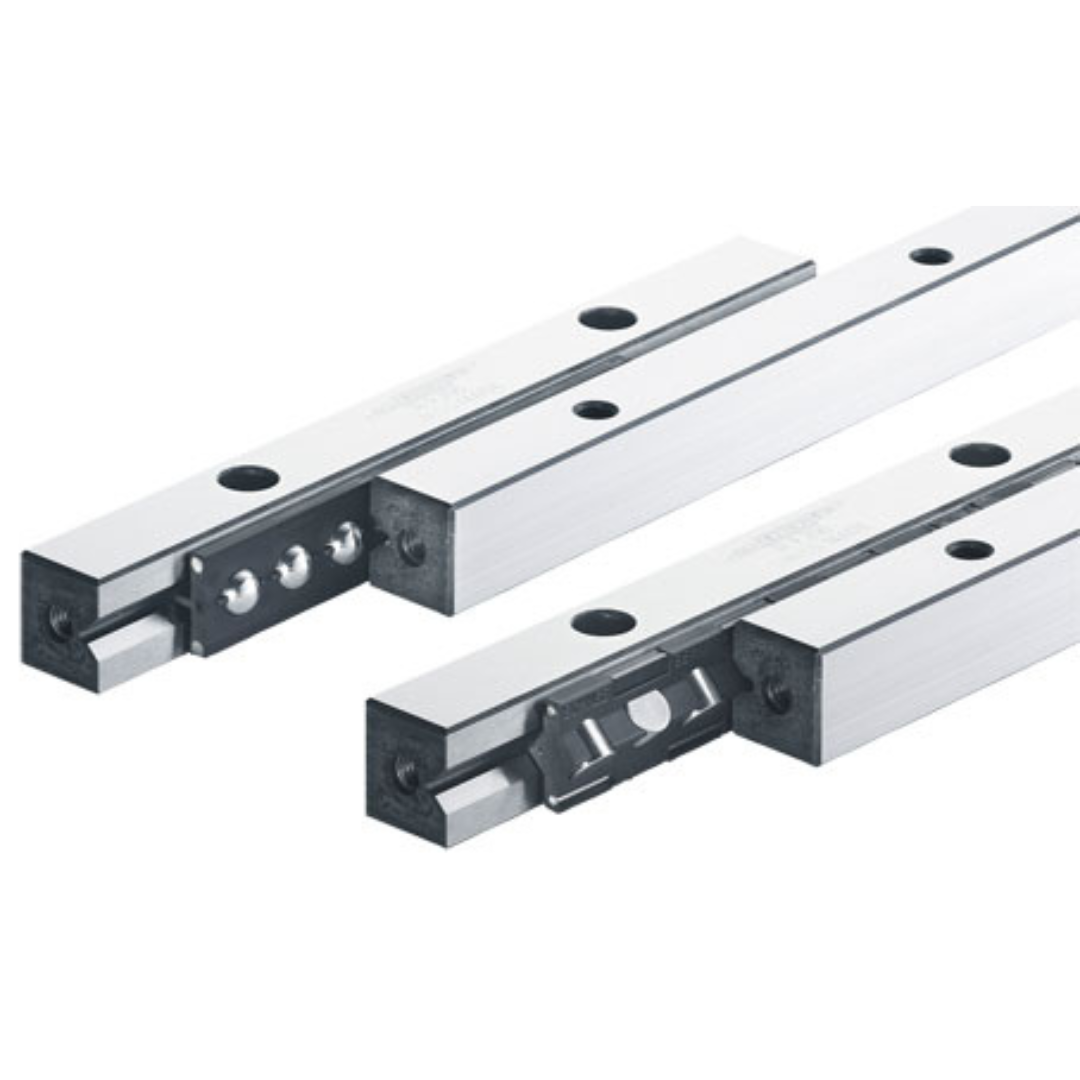

SCHNEEBERGER introduced the R linear guideway/cross-roller guideway and ball guideway as the first standardized frictionless guideways in the world. The guideway can be equipped with rollers or balls and is suitable for many applications in the medium to high requirement range. In combination with SCHNEEBERGER recirculating units, it can be used to build guideways with any desired stroke.
Sizes:1, 2, 3, 6, 9, 12
Special sizes 15 to 24 are produced on request.
Lengths: 20 to 1500 mm
Accessories:
- AC, AK, EE, AA-RF cages
- SR, SK, SKC, SKD recirculating units
- GA, GB, GC, GC-A end pieces
- GD special fastening screws

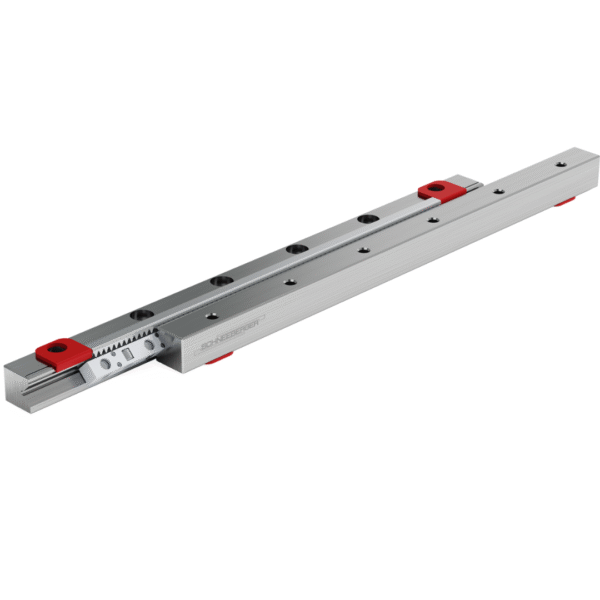

- Type RN / FORMULA-S linear guideway
Cross-roller guideway with larger contact surface for increased load-bearing capacity
Increased efficiency through deliberate advanced development
The RN linear guideway / cross-roller guideway is the advanced development version of the R linear guideway. Efficiency is greatly increased without the need for larger installed dimensions thanks to the larger contact surface between rollers and guideway. This guideway features three times more load capacity, high rigidity and precision, as well as the reduced contamination risk due to the narrow gap between the guide rails.
Sizes: 3, 4, 6, 9, 12
Lengths: 50 to 1500 mm
Accessories:
- KBN, KBS cage
- GA and GAN end screws
- GD special fastening screws
- FORMULA-S cage controls
- Type RNG linear guideway
Cross-roller guideway with roller bearings for a high load-bearing design
The roller bearings ensure implementation with the smallest installed dimensions
The RNG linear bearing/cross-roller guideway provides high performance with roller bearings. High load-bearing guideway designscan be implemented with roller bearings under the
smallest installed dimensions. The high performance of the relatively
small guideway cross-sections, ensures
unrivalled cost-effectiveness for many applications.
Sizes: 4, 6, 9, 12
Lengths: 50 to 1500 mm
Accessories
- KBN, KBS cage
- GBN, GCN, GCN-A end pieces
- GDN special fastening screws
- FORMULA-S cage control
