| Ean | 7316572520444 |

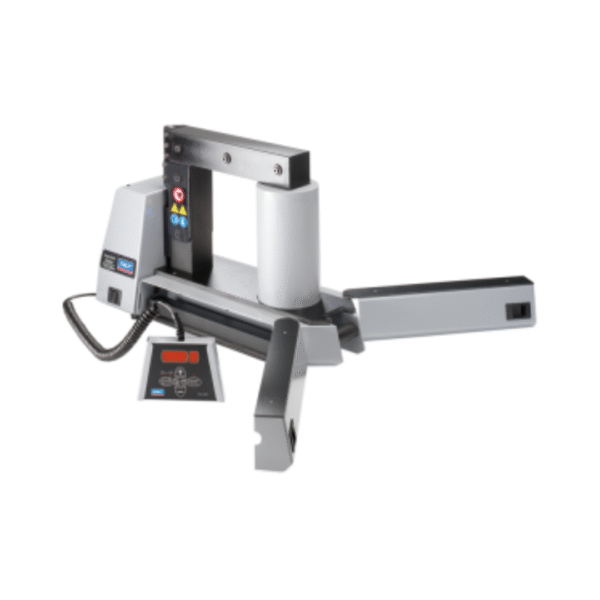

| Title | Skf induction heater tih 100m (230v version) |
| Subtitle | Medium induction heater with a 120 kg bearing heating capacity |
| Description | The skf tih 100m is a medium sized induction heater and is designed for the hot mounting of bearings. this compact heater is ideal for use on workbenches and can easily be transported to on-site applications with the optional heater trolley tih t1. the heater is supplied with a swivel yoke and two optional yokes for smaller bearings. the tih 100m can heat small bearings with a bore diameter of just 20 mm and larger bearings with a maximum weight of 120 kg. |
| Features | • supplied with a swivel yoke and two smaller yokes, located in an integrated storage compartment • easy and safe to use with automatic temperature control or time controlled heating • automatic demagnetization reduces risk of bearing contamination • suitable for non-bearing applications for workpieces weighing up to 60 kg • automatic temperature hold function to keep the bearing hot after completion of the heating cycle |
| Product page url | Http://www.skf.com/group/products/maintenance-products/bearing-heaters/heaters-for-mounting/induction-heaters/medium-induction-heater/index.html |
| Video url | Https://www.youtube.com/watch?v=hr9wtc9dw7s |
| Bore diameter range | 20 - 400 mm |
| Operating area w x h | 155 x 205 mm |
| Coil diameter | 110 mm |
| Standard yokes included for minimal bore diameter | 80;40;20 mm |
| Optional yokes for minimal bore diameter | 60;30 mm |
| Heating example bearing weight temperature time | 23156 cc/w33 97 kg 110 °c 20 min |
| Skf m20 performance | 97 kg |
| Max power consumption | 3.6 kv·a |
| Voltage | 220-240 v/50-60 hz |
| Temparature control | 20 to 250 °c |
| Demagnetisation according to skf norms | < 2 a/cm |
| Max heating temperature | 250 °c |
| Dimensions w x d x h | 570 x 230 x 350 mm |
| Total weight incl yokes | 42 kg |
| Ean | 7316572520444 |
| Title | Skf induction heater tih 100m (230v version) |
| Subtitle | Medium induction heater with a 120 kg bearing heating capacity |
| Description | The skf tih 100m is a medium sized induction heater and is designed for the hot mounting of bearings. this compact heater is ideal for use on workbenches and can easily be transported to on-site applications with the optional heater trolley tih t1. the heater is supplied with a swivel yoke and two optional yokes for smaller bearings. the tih 100m can heat small bearings with a bore diameter of just 20 mm and larger bearings with a maximum weight of 120 kg. |
| Features | • supplied with a swivel yoke and two smaller yokes, located in an integrated storage compartment • easy and safe to use with automatic temperature control or time controlled heating • automatic demagnetization reduces risk of bearing contamination • suitable for non-bearing applications for workpieces weighing up to 60 kg • automatic temperature hold function to keep the bearing hot after completion of the heating cycle |
| Product page url | Http://www.skf.com/group/products/maintenance-products/bearing-heaters/heaters-for-mounting/induction-heaters/medium-induction-heater/index.html |
| Video url | Https://www.youtube.com/watch?v=hr9wtc9dw7s |
| Bore diameter range | 20 - 400 mm |
| Operating area w x h | 155 x 205 mm |
| Coil diameter | 110 mm |
| Standard yokes included for minimal bore diameter | 80;40;20 mm |
| Optional yokes for minimal bore diameter | 60;30 mm |
| Heating example bearing weight temperature time | 23156 cc/w33 97 kg 110 °c 20 min |
| Skf m20 performance | 97 kg |
| Max power consumption | 3.6 kv·a |
| Voltage | 220-240 v/50-60 hz |
| Temparature control | 20 to 250 °c |
| Demagnetisation according to skf norms | < 2 a/cm |
| Max heating temperature | 250 °c |
| Dimensions w x d x h | 570 x 230 x 350 mm |
| Total weight incl yokes | 42 kg |
